适用范围
1、同时出现或分别出现爆炸性气体环境（1区、2区)和 可燃性粉尘（20区、21区或22区）的危险场所。
2、场所中危险气体或蒸气：IIA、IIB
3、温度组别：T1～T6
4、户内、户外（防护等级IP65)
产品特点

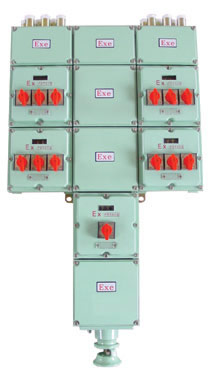

1、外壳采用压铸铝合金铸造
2、表面喷塑
3、内装C65N (H)-C、C65N(H)-D、NC100H及类似小型断路器
4、C65N(H)-C优先适用于照明配电系统, C65N(H)-D优先适用于动力配电系统
5、具有过载保护功能
6、进出线腔，电器元件腔分别独立

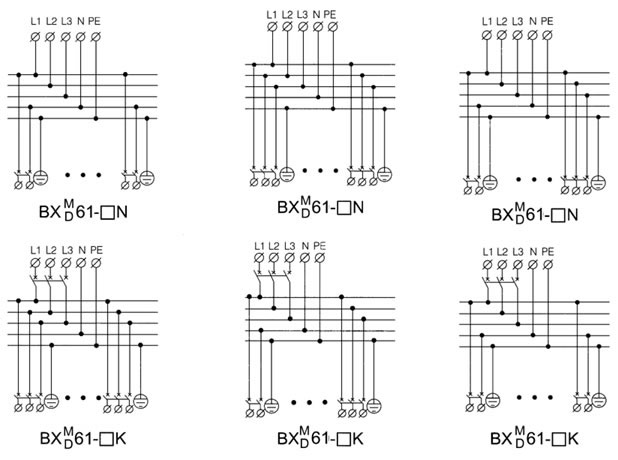

7、输入：3P+N+PE 输出：3P+N+PE或1P+N+PE
8、可根据要求特制
9、可钢管或电缆布线，电缆布线须配电缆夹紧密封接头 |
|
Applying scope
1、Hazardous area with explosive gas ( Zone 1＆2) and/ or combustible dust (Zone 20＆21＆22)
2、Dangerous gases or vapors zone:IIA、IIB
3、Temperature classes:T1～T6
4、Indoor and outdoor(degree of protection IP65)
Features
1、Enclosure is made of casting aluminium alloy
2、Surface is sprayed with plastics
3、Built-in small breaker such as C65N(H)-C,C65N(H)-D,NC100H etc
4、C65N(H)-C is preferable for lighting distribution system and C65N(H)-D for power distribution system
5、With overload protection function
6、Inlet,outlet compartment and component compartment are independent from each other
7、Input:3P+N+PE, output:3P+N+PE or 1P+N+PE
8、For user′s requirements, it could be special by made
9、Wiring with conduit or cable ,For cable, it should be fitted with explosion-protected cable sealing connector
|
