QYK船用防爆电控箱(IIB、IIC)



适用范围
1、爆炸性气体环境:1区、2区
2、场所中危险气体或蒸气:IIA、IIB、IIC
3、温度组别:T1~T4
4、海船甲板、机仓或海上平台,防护等级IP56


Applying scope
1、Explosive gas atmospheres:Zone 1&2
2、Dangerous gases or vapors zone: IIA、IIB、IIC
3、Temperature classes:T1~T4
4、For deck of ship, engine room,offshore drilling platform, degree of protection is IP56

产品特点
1、可用于400V/230V, 50-60HZ线路中作为报警,检测功能之用
2、碳钢或不锈钢外壳,表面喷塑(不锈钢可抛光处理)
3、钢管或电缆布线,电缆布线须用电缆夹紧密封接头
4、进线腔与元件腔分别独立
5、可根据用户要求制作
6、防爆标志:Exd II BT4
7、符合CCS要求
Features
1、It is used for alarm and check usage in circuit of 400V/230V,50- 60Hz
2、Carbon steel or stainless steel enclosure,surface is sprayed with plastics(stainless steel enclosure could be polished)
3、Wiring with conduit or cable,For cable, it should be fitted with explosion-protected cable sealing connector
4、Inlet compartment, apparatus compartment are independent from each other
5、For user′s requirement, it could be specially made
6、Ex-marking:Exd II BT4
7、It meets CCS requirement

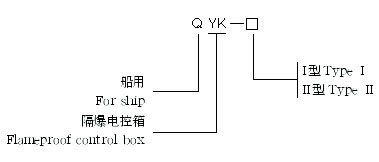

型号含义 Type designation 举例 Example
