XZFW系列现场分析小屋(IIB、IIC)
|
|
| |
|
适用范围
1、爆炸性气体环境：1区、2区
2、场所中危险气体或蒸气：IIA、IIB、IIC
3、温度组别：T1～T4
4、环境温度：-20℃～+40℃
5、户内、户外(IP56)
Applying scope
1、Explosive gas atmospheres:Zone 1＆2
2、Dangerous gases or vapors zone: IIA、IIB、IIC
3、Temperature classes:T1～T4
4、Environment temperature:-20℃～+40℃
5、Indoor and outdoor(IP56)
产品特点
1、设有防爆配电箱和接线箱
2、 敷线方式根据用户要求而定
3、可根据用户要求安装防爆空调，确保小屋内的温度，也可在屋内安装防爆电热汀或蒸汽供暖设备
4、内装防爆荧光灯
5、可根据用户要求内装工作台
6、 分析仪表可由用户自定
7、分析小屋具有防震、防静电、防火花、防尘、抗干扰等优点，为仪表提供良好的运行环境，增强系统的可靠性
8、分析小屋可将各工业领域中应用的各过程分析仪表相对集中安装，利用分析小屋公共工程统一供电，统一与控制室互传 信号
1.Provided with flamepoof distribution box and flameproof junction box
2.Wiring as per user′s requirement
3.According to user′s need, explosion-protected air conditioner,explosion-protected electrical equipment, or steam heating equip ment can be installed in the houselet to keep the temperature of the house
4.Built in Explosion-protected fluorescent lamps
5.Built in worktable as per user′s need
6.The analysis instruments can be determined by user
7.The analysis houselet is shake-proof,static proof,spark-proof, dust-proof, anti-jamming for better operating surroundings and strengthened reliability
8.Various kinds of process analysis instruments in industry field can be installed together in the analysis houselet and it is powered and signal tranfered by equipments in the house
|
|
 |
| |
|

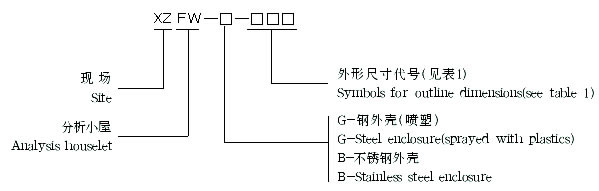

| 型号含义 Type designation |
|
 |
| |
|
| 主要技术参数 |
|
防爆标志 |
防护等级 |
吹洗 |
气源 |
耗气量 |
Expdem II BT4
Expdem II CT4 |
IP56 |
正压 |
净化空气 |
4-15m3/h |
|
|
| |
|
 |

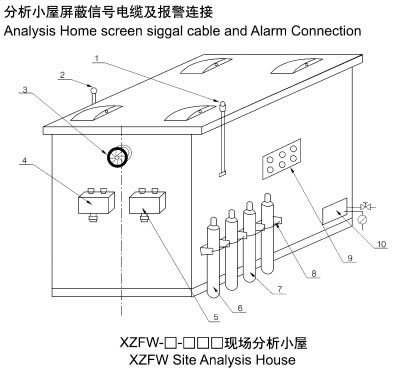

1、尾气排放管
Tail gas plume
2、报警灯
Alarm lamp
3、通风机
Veatilator
4、供电箱
Power supply box
5、信号及报警接线盒
Signal and alarm junction box
6、参比气、载气气源
Sample gas
|
7、标准气
Standard gas
8、钢瓶固定架
Fixed frame of steel bottle
9、气路接口板
Gas pipeline connecting board
10、分析间内工程管路接口板
Engineering pipeline connecting board inisde the analysis house. |
|
| |
|
| 现场分析小屋的规格及型号（表1) Size and model of the site analysis houselet( table 1) |
|
规格、型号 |
尺寸 高×宽×深(mm) |
材质 |
外形 |
内腔 |
内腔底面积 |
XZFW-G-4311
XZFW-B-4312
XZFW-L-4313 |
2500×2200×1700 |
2235×2100×1600 |
3.36m2 |
钢外壳（喷塑）
铝合金外壳 |
XZFW-G-4321
XZFW-B-4322
XZFW-L-4331 |
2500×2800×1700 |
2235×2700×1600 |
4.32m2 |
钢外壳（喷塑）
不锈钢外壳 |
XZFW-G-4331
XZFW-B-4332
XZFW-L-4333 |
2500×3400×1700 |
2235×3300×1600 |
5.28m2 |
铝合金外壳
钢外壳（喷塑）
不锈钢外壳 |
XZFW-G-4341
XZFW-B-4342
XZFW-L-4343 |
2500×4000×1700 |
2235×3900×1600 |
6.24m2 |
铝合金外壳
钢外壳（喷塑）
不锈钢外壳
铝合金外壳 |
|
| |
|
| |
|
| |
|
