LA53系列防爆控制按钮(IIB、IIC)


适用范围
1、1区、2区危险场所。
2、IIA、IIB、IIC类爆炸性气体环境。


  Application
1、Can be used in Zone 1 and Zong 2 dangerous places.
2、Can be used in IIA、IIB、IIC group explosive atmosphere.

产品特点

1、铸铝合金外壳,表面喷塑。
2、整体为复合型结构,外壳采用增安型结构,具有较强的防水、防尘能力,内装的按钮、指示灯、电流表均为防爆元件。
3、钢管或电缆布线均可。
4、符合GB3836-2000,IEC60079标准要求。

Features
1、Diecasted Al-alloy shell, with plastic-sprayed surface.
2、Compound structure of safety-increased type, with functions of water-proofing, dust-proofing inside is arranged button, indicator, Ammeter of explosion-proof types.
3、Suitable for steel pipe and cable wiring.
4、Suitable for GB3836-2000, IEC60079 standard request.

LA53-2

LA53-2A

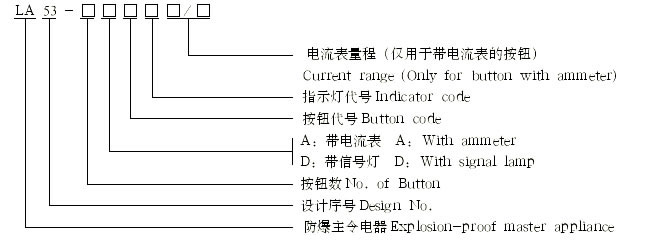

型号含义 Type designation

主要技术参数 Main technical parameters
额定电压(V)
额定电流(A)
防爆标志
防护等级
进线口螺纹
电缆外径
380/220
10
Exd II BT6
Exd II CT6
IP65
3/4
10-14
