适用范围
1、爆炸性气体环境危险场所：1区、2区
2、爆炸性气体环境：ⅡA、ⅡB、ⅡC
3、温度组别：T1～T6
4、户内、户外

Application scope
1、Explosive gas atmospheres hazardous location:zone 1,zone2
2、Explosive gas atmospheres:group ⅡA,ⅡB ,ⅡC
3、Temperature class:T1～T6
4、Indoor and outdoor

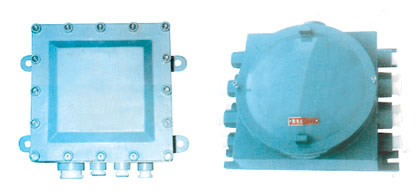

产品特点
1、可适用于400Ｖ、230V及以下线路中作为连接 各种电器、仪表设备的分线、接线之用，也可 作自控或通讯信号或电源线的连接。
2、铸铝合金外壳，表面喷塑。
3、端子、出线口方向、数量及公称直径可变化。
4、钢管或电缆布线，电缆布线须配电缆密封接头。

Product Features
1、It could be used for connecting of branch lines and wire of apparatus and meters in circuit of 400/230V and blow,also of signal or source line for automatic control of telecommunication.
2、Enclosure is made of casting aluminum alloy,sprayed with plastics.
3、 No.of terminal,direction of outlets,number and normal dia.could be changed.
4、Wiring with conduit or cable,if the latter,it should be fitted with
explosion-protected cable seal gland.
