MK系列防爆电缆夹紧密封接头


适用范围
1、爆炸性气体环境危险场所：1区、2区
2、爆炸性气体环境：ⅡA、ⅡB
3、温度组别：T1～T6
4、户内、户外(IP54可按用户要求达到IP65)

Application scope
1、Explosive gas atmospheres hazardous location: zone 1, zone2
2、Explosive gas atmospheres: group ⅡA,ⅡB
3、Temperature classes: T1～T6
4、Indoor and outdoor (IP54 .It could be designed as IP65 according to use requirement)

产品特点
1、防爆标志：ExdⅡ。
2、采用优质钢、不锈钢或黄铜制成。
3、接线口螺纹规格可特制：如NPT特级、公制螺纹等。

Product Features
1、Explosion protection marking: ExdII.
2、It is made from qualified steel, stainless steel or brass.
3、 Thread size of joints may be specific, e.g. NPT thread or metric thread, ect.

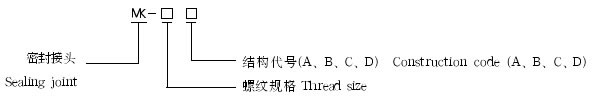

型号含义 Type designation
主要技术数据 Main technical Specification

公称直径(mm)
MK-A
MK-B
电缆外径
G
L
外形图
G
L
外形图
13
G1/2″
87
G1/2″
55
7-9
24
G3/4″
87
G3/4″
55
8-15
25
G1″
115
G1″
70
10-18
32
G11/4″
130
G11/4″
70
13-23
38
G11/2″
130
G11/2″
75
17-26
50
G2″
145
G2″
75
25-35
63
G21/2″
145
G21/2″
80
29-38
75
G3″
160
G3″
90
33-51
100
G4″
175
G4″
95
42-60
公称直径(mm)
MK-C
MK-D
电缆外径
G
L
外形图
G
L
外形图
13
G1/2″
70
G1/2″
63
7-9
20
G3/4″
70
G3/4″
63
8-15
25
G1″
85
G1″
63
10-18
32
G11/4″
85
G11/4″
70
13-23
38
G11/2″
90
G11/2″
70
17-26
50
G2″
95
G2″
70
25-35
63
G21/2″
95
G21/2″
70
29-38
75
G3″
105
G3″
70
33-51
100
G4″
120
G4″
70
42-60
