MK系列防爆填料函(dII)



适用范围
1、1区、2区危险场所。
2、IIA、IIB、IIC类爆炸性气体环境。

Application scope
1、Can be used in Zone 1 and 2 dangerous places.
2、Can be used in IIA、IIB、IIC group explosive atmosphere.


产品特点

1、采用黄铜或不锈钢制成,如要求不锈钢请注明。
2、电缆采用填料密封。
3、防护性能良好。
4、具有使用、安装方便、结构安全可靠,防爆性能优越等特点。
5、符合GB3836-2000, IEC60079标准要求。

1、Made of brass or stainless steel, please note if require stainless steel.
2、Cable is applied to gasket seal.
3、High protection.
4、Ease to use and install, safety, security, explosion-proof.
5、Suitable for GB3836-2000, IEC60079 standard request.

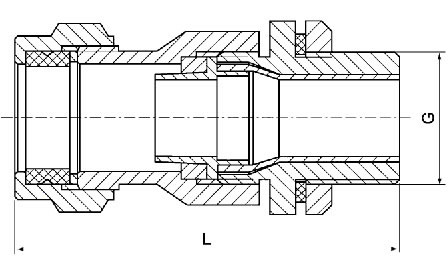

型号含义 Type designation

主要技术数据 Main technical Specification
产品型号
防爆标志
防护等级
电缆外径(f,mm)
L
MK-G1/2″
Exd II
IP66
3~8
72
MK-G3/4″
10~14
74
MK-G1″
11~19
84
MK-G1 1/4″
17~26
88
MK-G1 1/2″
22~32
93
MK-G2″
29~44
95
MK-G2 1/2″
40~56
103
MK-G3″
52~68
126
