BX59-隔爆型照明(动力)配电箱(IIB)


适用范围
1、爆炸性气体环境:1区、2区
2、场所中危险气体或蒸气:IIA、IIB
3、温度组别:T1~T6
4、户内、户外(防护等级IP54, 可达IP65)


产品特点
1、铸铝合金外壳,表面喷塑
2、内可装C65N(H)-C、C65N(H)-D、NC100H及类似小型断路器
3、具有过载、短路保护功能
4、C65N(H)-C 优先适用于照明配电系统,C65N(H)-D优先适用于动力配电系统
5、进出线腔、电器元件腔分别独立
6、输入:3P+N+PE 输出:3P+N+PE或1P+N+PE
7、可根据用户要求特制
8、可钢管或电缆布线,电缆布线须配电缆夹紧密封接头
  Applying scope
1、Explosive gas atmospheres:Zone 1&2
2、Dangerous gases or vapors zone: IIA、IIB
3、Temperature classes:T1~T6
4、Indoor and outdoor (IP 54,It could be designed as IP65 according to user′s requirements)


Features
1、Enclosure is made of casting aluminium alloy,surface is sprayed with plastics
2、Built-in small breaker such as C65N(H)-C, C65N(H)-D,NC100H etc
3、With overload and short circuit protection function
4、C65N(H)-C is preferable of lighting distribution system and C65N(H)-D for power distribution system
5、Inlet,outlet compartment and component compartment are independent from each other
6、Input:3P+N+PE , output: 3P+N+PE or 1P+N+PE
7、For user′s requirements, it could be specially made
8、Wiring with conduit or cable,For cable, it should be fitted with explosion-protected cable sealing connector
主要技术参数 Specification
型号
防爆标志
额定工作电压(V)
主回路额定工作电流(A)
支路数
支路额定工作电流(A)
使用类别
极数
进线口规格
出线口规格电缆外径
BBX□59-4N
Exde II BT6
380/400
220/230
4
1,3,6,10,16,
25,32,40,50,
63,80,100,125
AC1,AC3
3P+N+PE
3P+PE
1P+N+PE
G40
F16~F24.5
G20
F8~F12
BX□59-6N
6
BX□59-8N
8
BX□59-10N
10
BX□59-12N
12
BX□59-4K
≤80
4
BX□59-6K
≤125
6
BX□59-8K
≤125
8
BX□59-10K
≤125
10
BX□59-12K
≤125
12

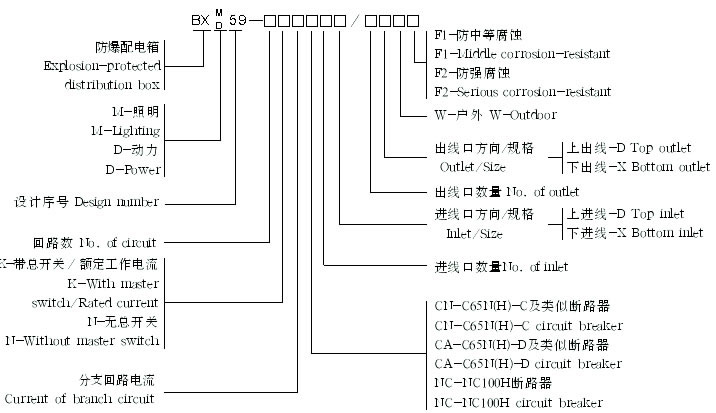

型号含义 Type designation

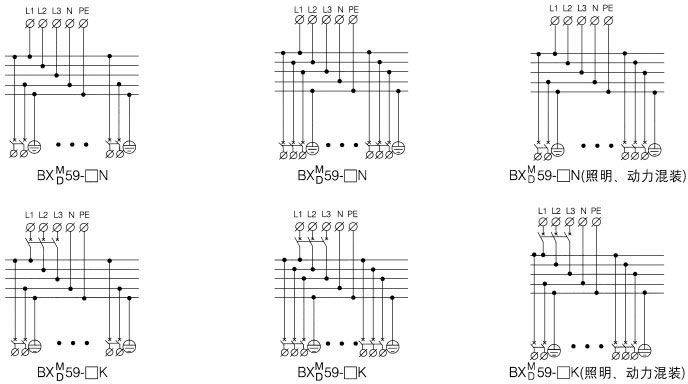

电气原理图 Electrical principle chart
