BAJ52系列防爆应急灯(IIB、IIC)
|
|
| |
|
适用范围
1、1区、2区危险场所。
2、ⅡA、ⅡB、ⅡC类爆炸性气体环境。
3、可配装白炽灯、汞灯。
＊要求ⅡC类时请注明。
Application
1、Can be used in Zone 1 and Zone 2 dangerous places.
2、Can be used in ⅡA、ⅡB、ⅡC group explosive atmosphere.
3、Suitable for incandescent lamp, mercury vapor lamp.
*Please note if needⅡC group. |
产品特点
1、铸铝合金外壳，表面喷塑。
2、应急专用灯中正常照明灯和应急照明灯
各自独立，适合于安装条件许可的场所；
照明应急两用灯，正常照明和应急照明
共用一个灯体，光源独立。
3、内装免维护镍镉电池组，在正常供电下自动
充电，事故断电或停电时应急灯自动点亮。
4、钢管或电缆布线均可。
5、可根据用户要求设置试验按钮和指示灯。
6、符合GB3836-2000，IEC60079标准要求。
Features
1、Diecasted aluminium alloy shell with plastic-sprayed surface.
2、 Normal lamp and emergency lamp of the division type are respectively suitable to
the appropriate sites, but the dual-purpose for lighting and emergency type share a
same lamp body, moreover light source is independent.
3、Under the normal power-supplying condition, inner Nickel-Cadmium battery can
recharge automatically, so that the emergency lamp will turn on automatically when
the power lose because of accident or power failure.
4、Suitable for both steelpipe and cable wiring.
5、It can be equipped with test button and indicator according to user’s requirement.
6、Suitable for GB3836-2000, IEC60079 standard request. |
|
 |
| |
|
 |
| |
|
| 主要技术参数 Main technical parameters |
|
|
防护等级 |
电缆外径 |
进线口螺纹 |
Exde II BT4
Exde II CT4 |
IP54 |
10-14 |
3/4 |
|
|
| |
|
额定电压 |
应急起动时间 |
充电时间 |
应急照明时间 |
正常 |
应急 |
0.3 |
24 |
90 |
220 |
6 |
|
|
| |
|
| 配用光源 Supplied with lamps |
|
正常照明 |
应急照明 |
125W自镇汞灯 |
20W碘钨灯 |
200W白炽灯 |
|
|
| |
|

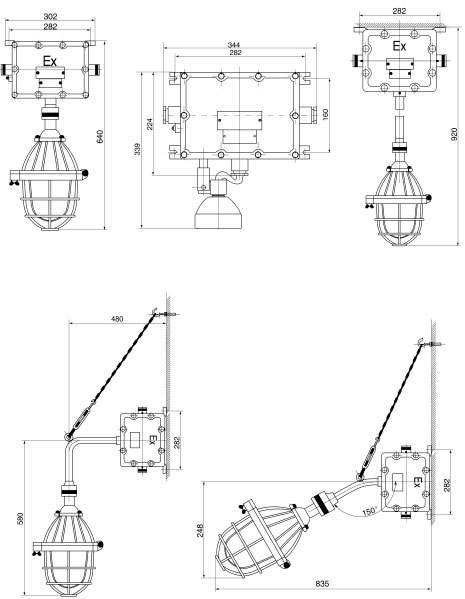

| 外形及安装举例 Outline and mounting example |
|
 |
| 壁式安装90°(b2) ° 壁式安装30°(b1) |
|
| |
|
| |
|
