ADYS系列高效节能全塑防爆荧光灯(IIC)

适用范围
1、1区、2区危险气体场所;
2、IIA、IIB、IIC类T1～T4组爆炸性气体或蒸气环境;
3、可适用于石油化工、船舶、海上钻井、采油平台等场所；
4、户内、户外（IP55)。

Application
1、Hazardous gas areas: Zone 1＆2;
2、Explosive gas or vapor atmospheres :Class IIA、 IIB、IIC, temperature class: T1～ T4;
3、Suitable for the palces of petrochemicals, ship, artesian well on sea and petroleum platform etc.
4、Indoor and outdoor(IP55).

产品特点
1、外壳采用SMC模压成型，具有较强的抗冲击能力，灯罩 采用聚碳酸脂注塑成型，具有较高的透光性；
2、密封性能可靠，具有良好的防尘、防水、防腐功能；
3、发光率高，cosF≥0.95;
4、配装应急装置，可做应急照明两用灯；
5、内装灯管可根据要求选用单脚灯管或双脚灯管；
6、多种安装形式，满足不同场所需求。


The shell adopts high intensity SMC moulded structure; transparent cover is made of high-intensity polycarbonates moulded structure;
Nteger adopts sealing structure with good features of waterproof and dustproof;
High luminance, cosF≥0.95.
Equipped with emergency set, can be used for functions of normal and emergency lighting;
Built-in lamplight can be selected from single-pin tube or double-pin tube by request;
Various installation form applied to various locations.


主要技术参数 Main technical parameters

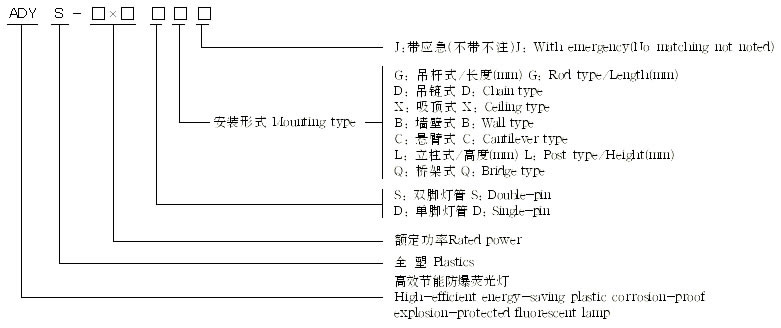

型号
防爆标志
额定电压(V)
功率因数(W)
应急时间(min)
转换时间(s)
电缆外径(mm)
管螺纹
ADYS-1×36(40)
ExedIICT4(单脚）
ExedmIICT4(双脚）
AC220/230
cosf≥0.95
*≥90
*≤0.5
Ф8-Ф12
G 3/4
ADYS-2×36(40)
ADYS-1×18(20)
ADYS-2×18(20)

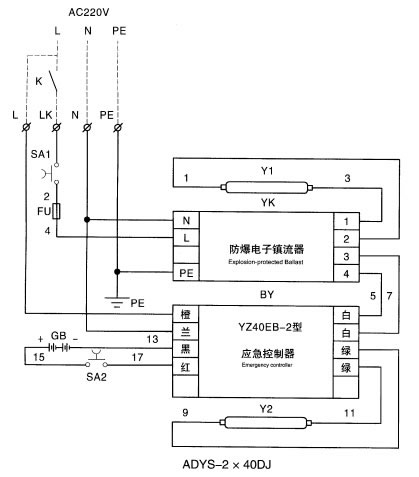

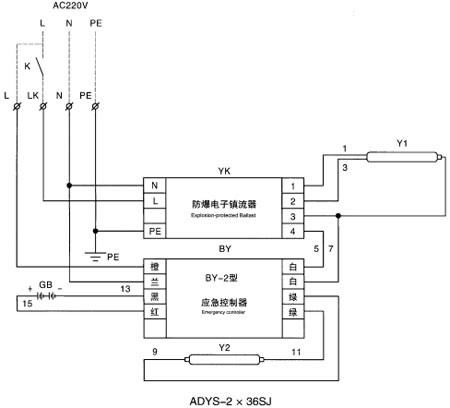

应急电气原理图 Emergency electrical principle chart

使用说明：虚线部分接线由用户自己来完成。L为充电电源，不受K开关控制一直处于充电状态。LK为控制电源，由K开关来控制灯亮与灭，有电时电池充电Y1、Y2点亮，停电时应急控制器工作，Y2点亮，Y1熄灭此时电路进入应急状态。
Instruction: The dashed part is completed by the user. L is charging power. It is not controlled by switch K and is always in the state of charging. LK is control power that controls on and off of the light by switch K. When power is on, battery is charged and Y1,Y2 are enlightened; when power is cut, emergency controller starts to work and Y2 is enlightened while Y1 quenches. Then the conduit goes into emergency state.
使用说明：虚线部分接线由用户自己来完成。L为充电电源，不受K开关控制一直处于充电状态。LK为控制电源，由K开关来控制灯亮与灭，有电时电池充电Y1、Y2点亮，停电时应急控制器工作，Y2点亮，Y1熄灭此时电路进入应急状态。
Instruction: The dashed part is completed by the user. L is charging power. It is not controlled by switch K and is always in the state of charging. LK is control power that controls on and off of the light by switch K. When power is on, battery is charged and Y1,Y2 are enlightened; when power is cut, emergency controller starts to work and Y2 is enlightened while Y1 quenches. Then the conduit goes into emergency state.

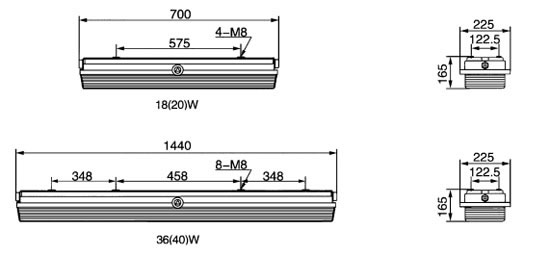

外形及安装举例 Outline and mounting example
