BAP52系列防爆平台灯(IIB、IIC、e)
|
|
| |
|
适用范围
适用范围同相应的配装灯具。Can be use in zone same as equipped lamp.
|
产品特点
1、灯杆采用优质钢管表面喷塑。
2、弯杆和直杆采用插接式连接，便于安装和调整灯具的转向。
3、01、02、05、06型可根据用户要求配装灯伞。
4、符合GB3836-2000，IEC60079标准要求。
Features
1、The lamp pole is made of steel pipe with plastic-sprayed surface.
2、Bend or vertical pole is inserted to connect, with the convenience to install and rotate the direction.
3、Type 01、02、05、06 can install lamp cover to user’s requirement.
4、Suitable for GB3836-2000, IEC60079 standard request. |
|
|
 |
| |
| 灯具代号 Lamp code |
代号 |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
|
BAD51 |
BAD52 |
BAD52-e |
BAD54-e |
BAD54 |
BAD56 |
BAD61 |
BAD56-e |
防爆标志 |
d II BT4 |
d II BT4 |
e II T3 |
e II T2 |
d II BT4 |
d II CT4 |
d II CT4 |
e II T3 |
|
|
| |
|
| 配用光源 Supplied with lamp |
|
型号 |
自镇汞灯125W |
自镇汞灯160W |
白炽灯200W |
高压汞灯125W |
高压钠灯110W |
金卤灯110W |
灯座 |
BAP52-01 |
√ |
√ |
√ |
√ |
√ |
√ |
E27 |
BAP52-02 |
√ |
√ |
√ |
√ |
√ |
√ |
BAP52-03 |
√ |
|
√ |
√ |
|
√ |
BAP52-06 |
√ |
√ |
√ |
√ |
√ |
√ |
BAP52-07 |
√ |
|
|
√ |
√ |
√ |
BAP52-08 |
√ |
|
√ |
√ |
|
√ |
|
|
| |
|
型号 |
自镇汞灯250W |
白炽灯300W |
高压汞灯175W |
高压汞灯125W |
金属卤灯175W |
金属卤灯250W |
高压钠灯150W |
高压钠灯250W |
灯座 |
BAP52-04 |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
E40 |
BAP52-05 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
| |
|
|
|
|
|
BAP52-01 |
BAP52-02 |
BAP52-03 |
BAP52-04 |
|
|
|
|
BAP52-05 |
BAP52-06 |
BAP52-07 |
BAP52-08 |
|
| |
|
 |

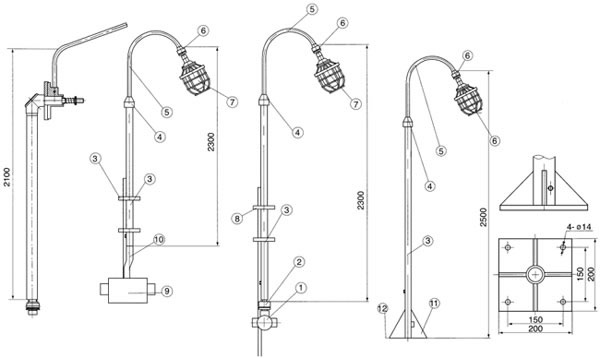

折叠式灯杆(z) 平台灯配镇流器式安装(h1) 平台灯配接线盒式安装(h2) 平台灯法兰式安装(f)
|
| |
|
序号 No. |
名称及规格 Description and specification |
备注 Remark |
1 |
接线盒3/4″三通 Junction box 3/4″(3 outlets) |
用户自备 Prepared by user |
2 |
活接头 Active connector |
3/4″ |
3 |
管子 Pipe |
11/2″ |
4 |
异径接头 Connector |
|
5 |
弯杆 Bend pipe |
1″ |
6 |
异径活接头 Active coupler |
|
7 |
防爆灯 Explosion-proof lamp |
|
8 |
U型管夹“U”clamp |
用户自备 |
9 |
镇流器 Ballast |
用户自备 |
10 |
挠性连接管 Flexible connecting pipe |
用户自备 |
11 |
支撑架 Support |
|
12 |
底板 Bottom plate |
|
|
|
| |
|
| |
|
