XD-N100防爆检修动力配电箱(IIB IIC)

适用范围
1、爆炸性气体环境：1区、2区
2、场所中危险气体或蒸气：IIA、IIB、IIC
3、温度组别：T1～T6
4、户内、户外（防护等级IP54, 可达IP65)



产品特点
1、外壳采用铸铝合金或钢板焊接成型，表面喷塑
2、内装NC100H或NC100LS断路器
3、具有过载、短路保护功能
4、进线腔、元件腔、出线腔分别独立
5、输入、输出：3P+N+PE
6、可根据用户要求特制
7、钢管或电缆布线，电缆布线须配电缆夹紧密封接头

   Applying scope
1、Explosive gas atmospheres:Zone 1＆2
2、Dangerous gases or vapors zone: IIA、IIB、IIC
3、Temperature classes:T1～T6
4、 Indoor and outdoor (IP 54,It could be designed as IP65 according to user′s requirements)

Features
1、Enclosure is made of casting aluminium alloy or steel plate,surface is sprayed with plastics
2、Built-in NC100H or NC100LS circuit breakers
3、With overload and short circuit protection function
4、Inlet compartment, component and outlet compartment are independent from each other
5、Input and output: 3P+N+PE
6、For user′s requirements, it could be specially made
7、Wiring with conduit or cable,For cable, it should be fitted with explosion-protected cable sealing connector


主要技术参数 Specification
型号
回路数
额定工作电压(V)
主回路额定工作电流(A)
支路额定工作电流(A)
使用类别
极数
BD□-2N100
2
380
≤125
3,6,10,16,25,32,
40,50,63,80,100
AC3
3P+N+PE
BD□-3N100
3
BD□-4N100
4
BD□-6N100
6

防护等级
防爆标志
防腐等级
进口线规格/电缆外径(mm)
出口线规格/电缆外径(mm)
IP54、*IP65
Exd II BT6
Exd II CT6
W,WF1,WF2
G40～G50/F16～F36
G32～G40/F12.5～F24.5

型号含义 Type designation

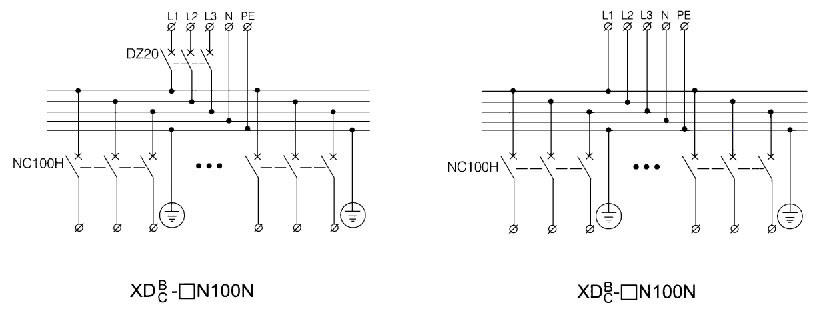

电气原理图 Electrical principle chart
